WATER RIDES

Flume Ride

A fun way to get a refreshing soaking!
0
M TRACK
0
BOATS
0
RIDERS
water-Flume-Ride-fabbri-3

2 drops and splashes

The flume ride is a nice and adventurous track with two drops and splashes. Riders sit in log-themed boats moving through the water channels activated by pumps and transport belts to bring them up to a height of 10 meters.

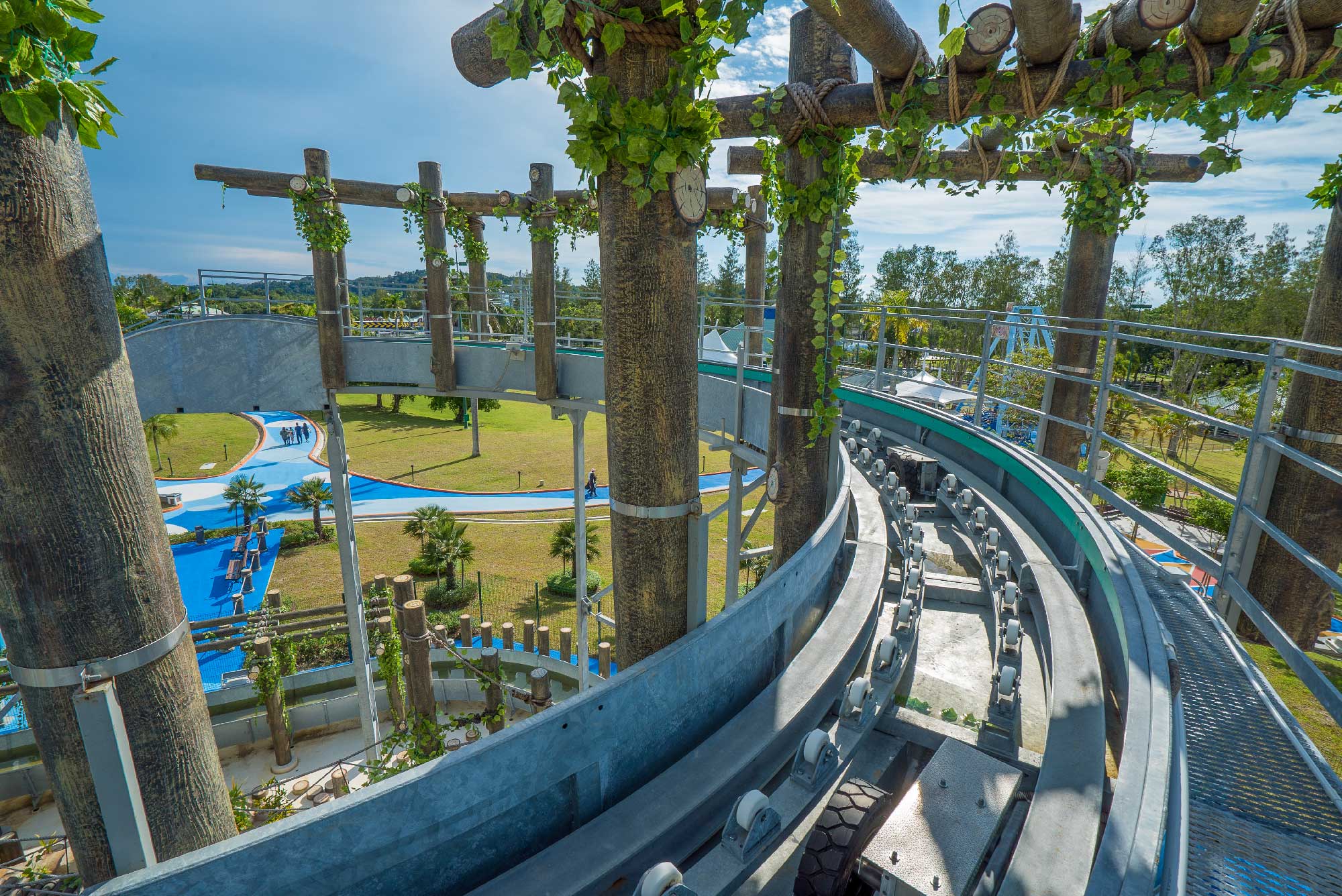

Ride description. The path, consisting of two concentric interconnected rings, enables boats to navigate, driven by water flow produced by pumps. The station area features a motorized belt system placed just above the waterline, on which wire boats are transported. This way the boats lie on the same belt and are stable; passengers can get on and off while the boat runs alongside the station on the belt. Along the way there are two ramps (9 and 4.5 meters) that take the boats at height using a conveyor belt. Once they reach the top, the boats are free to travel by gravity down. The path ends with a plunge into the water channel followed by an exciting splashdown.

LOG FLUME RIDE

  • DIMENSIONS

    FOOTPRINT: 56 meters / 183’ x 26 meters / 61’. HEIGHT: 9.5 meters / 31’2”. Sizes can be modified at special request.

  • CAPACITY

    LOG BOATS: 8. SEATS: 32. ESTIMATED HOURLY CAPACITY: 480 pph. MINIMUM RIDER HEIGHT: kids in between 100-130 cms must be accompanied by an adult. SUGGESTED DISPATCH TIME: 35 seconds.

  • POWER REQUIREMENTS

    CITY LINE CONNECTION: 75 kw approx.

  • TRANSPORT AND ASSEMBLY

    TRANSPORT: 4 x 40’ O.T. + 4 x 40’ H.Q. + 2 x 40’ box + 2 x 20’ box. WEIGHT: 55 tons. RIDE ASSEMBLY TIME: 20 days.

  • AVAILABILITY

    Park model
