Voyager

A crazy good mix of movements

0
M HIGH
0 G
ACCELERATION
0
RIDERS
Voyager-fabbri-jamaicadrum-dubai-4

Horizontal & vertical rotations

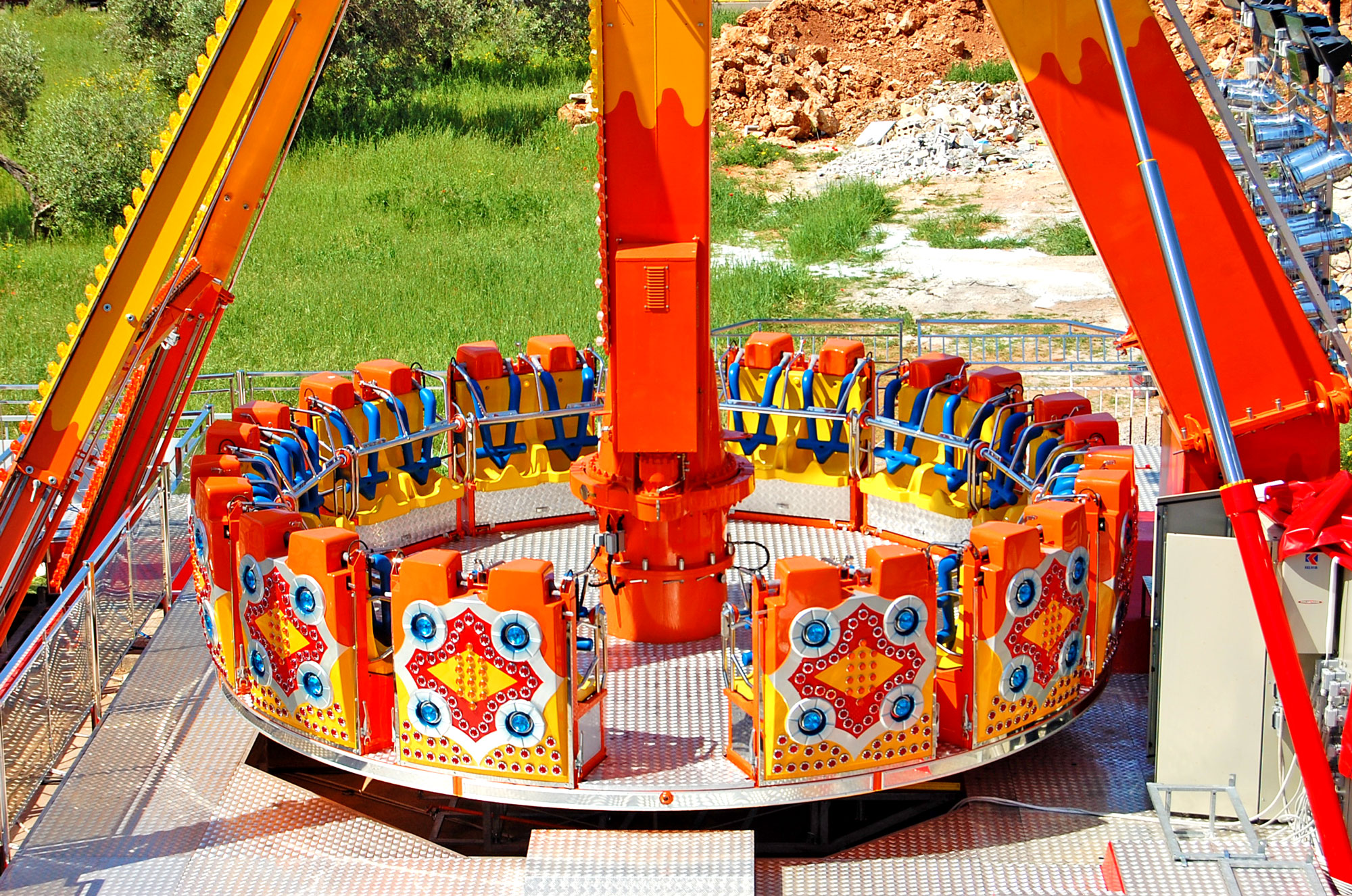

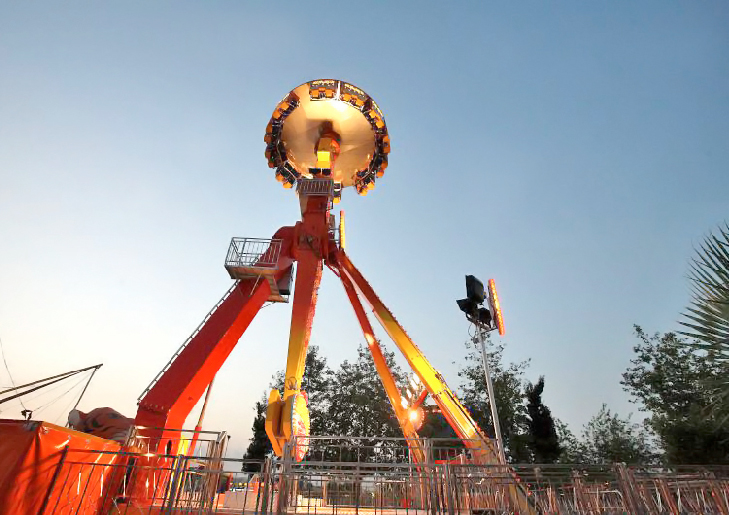

The ride is made up of three inclined columns converging on top, where a rotating arm is connected by means of two swinging bearings. On one side of the arm a counterweight is fixed, while on the other side is a circular gondola featuring 24 seats divided into 12 sections of two seats each.

By means of a DC motor, the arm swings until it makes a complete 360° rotation while the gondola rotates up to the max. speed of 12 rpm. During its descent, the arm reaches a speed which is much higher than the force of gravity and which, added to the rotation of the gondola, leads riders to experience the thrills given by a 4.0 G force.

Movements of the ride

  • 360° rotation of the arm
  • Rotation of the gondola
  • Looping of the passengers (upside down)

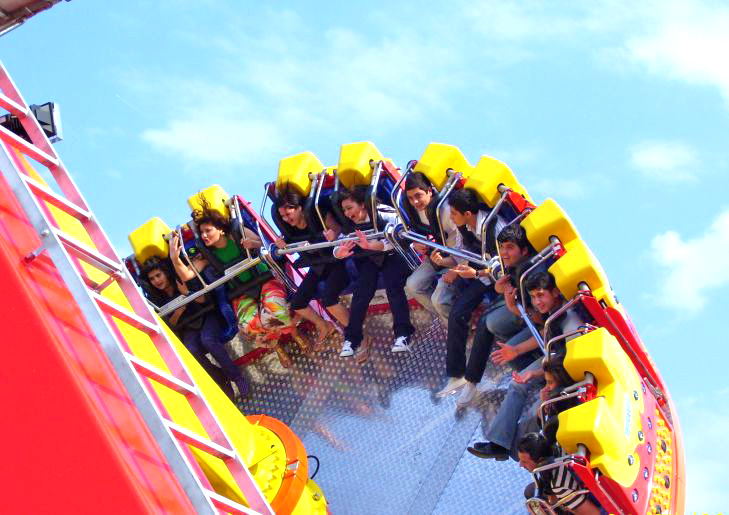

The passengers sit down one next to the other facing inwards and with their feet on the gondola floor. All passengers are safely seated using an over-the-shoulder bar with double restraints.

PARK OR TRAVELLING MODEL

  • DIMENSIONS

    FOOTPRINT: 14.60 meters / 47’11” x 11.70 meters / 38’5”. HEIGHT: 17 meters / 55’9”. Sizes can be modified at special request.

  • CAPACITY

    CARS: 12. SEATS: 24. ESTIMATED HOURLY CAPACITY: 480 pph. MINIMUM RIDER HEIGHT: 130 cms. SUGGESTED RIDE CYCLE: 120 + 60 seconds.

  • POWER REQUIREMENTS

    CITY LINE CONNECTION: 120 kw approx.

  • TRANSPORT AND ASSEMBLY

    TRANSPORT: 2 x 40’ O.T. WEIGHT: 28 tons. RIDE ASSEMBLY TIME: 7-10 days.

  • AVAILABILITY

    Park or Travelling model
