Smashing Jump

The most famous wave movement!

UP TO

0
METERS HIGH

UP TO

0
rpm speed

UP TO

0
SEATS

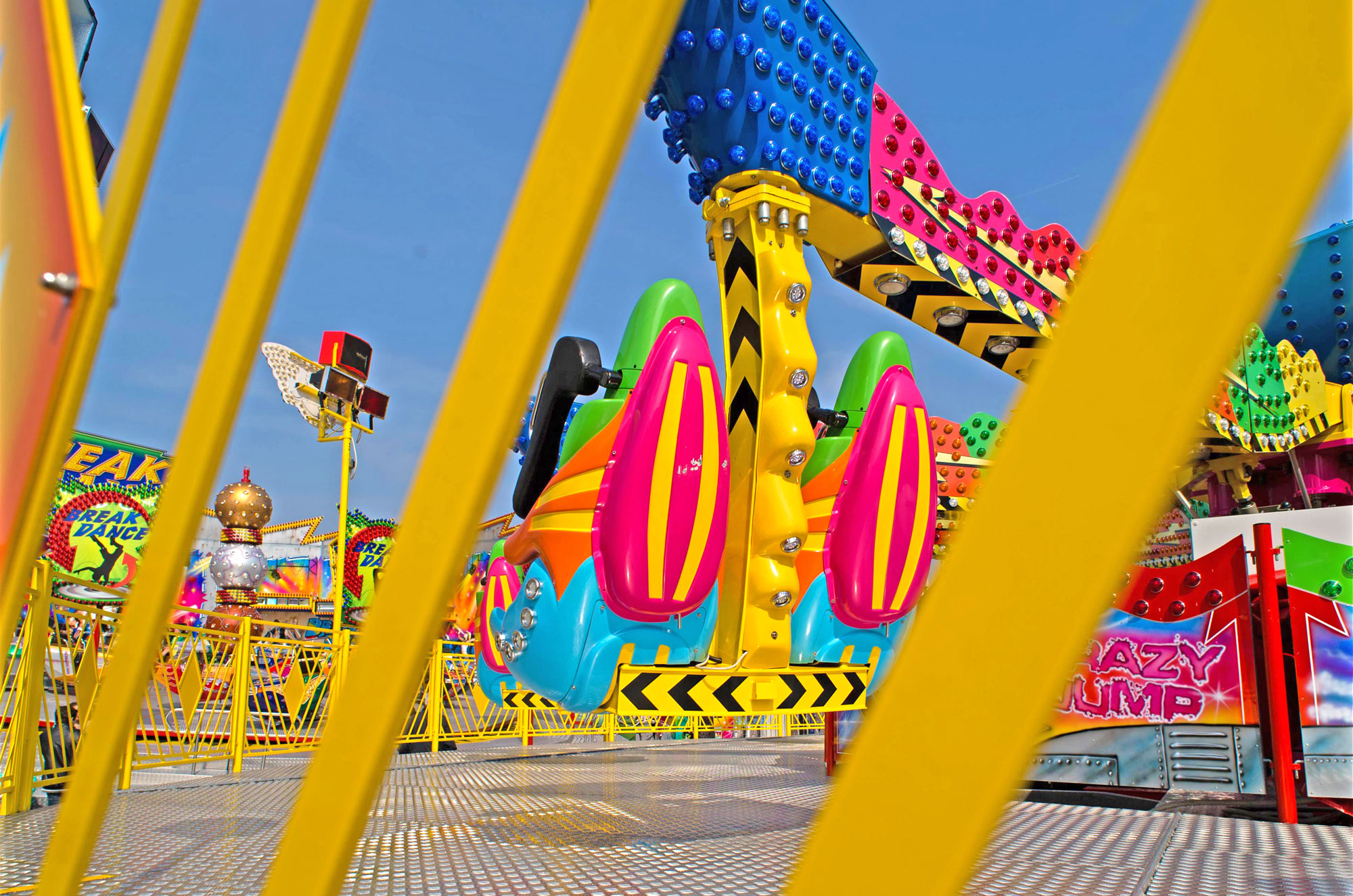

Rotations mixed with high jumps

The strongest and fastest version of this type of attraction in the market! The ride performs fast rotations as the arms jump up and down making very nice patterns.

Our long hydraulic cylinders and powerful compressors make for the longest arms, the tallest jumps, the strongest strokes and the best entertainment for riders. The suspended cars move freely and are parked with a brake to make the passenger exit and enter in a safe and quick way.

The ride can be seen in many parks and is also present almost every year at the Oktoberfest in Munich, Germany. The ride is available in an 8-arm and 12-arm version.

Photos credit: Bonsai Truck, Hans van den Broek

8-ARM MODEL

  • DIMENSIONS

    FOOTPRINT: Ø 16 meters / 52’6”. HEIGHT: 6.4 meters / 21’. Sizes can be modified at special request.

  • CAPACITY

    CARS: 8. SEATS: 16. ESTIMATED HOURLY CAPACITY: 320 pph. MINIMUM RIDER HEIGHT: 130 cms. SUGGESTED RIDE CYCLE: 120 + 60 seconds.

  • POWER REQUIREMENTS

    CITY LINE CONNECTION: 160 kw approx.

  • TRANSPORT AND ASSEMBLY

    TRANSPORT: 3 x 40’ O.T. + 1 x 40’ H.C. WEIGHT: 16.5 tons. RIDE ASSEMBLY TIME: 10 days.

  • AVAILABILITY

    Park or Travelling model

12-ARM MODEL

  • DIMENSIONS

    FOOTPRINT: Ø 17.5 meters / 57’5”. HEIGHT: 7.3 meters / 23’11”. Sizes can be modified at special request.

  • CAPACITY

    CARS: 12. SEATS: 24. ESTIMATED HOURLY CAPACITY: 480 pph. MINIMUM RIDER HEIGHT: 130 cms. SUGGESTED RIDE CYCLE: 120 + 60 seconds.

  • POWER REQUIREMENTS

    CITY LINE CONNECTION: 120 kw approx.

  • TRANSPORT AND ASSEMBLY

    TRANSPORT: 4 x 40’ O.T. + 1 x 40' H.C. WEIGHT: 18.5 tons. RIDE ASSEMBLY TIME: 12-15 days.

  • AVAILABILITY

    Park or Travelling model
