Explorer

A classical pendulum ride for both outdoor and indoor locations

M HIGH
0
ACCELERATION
0 G
RIDERS
0

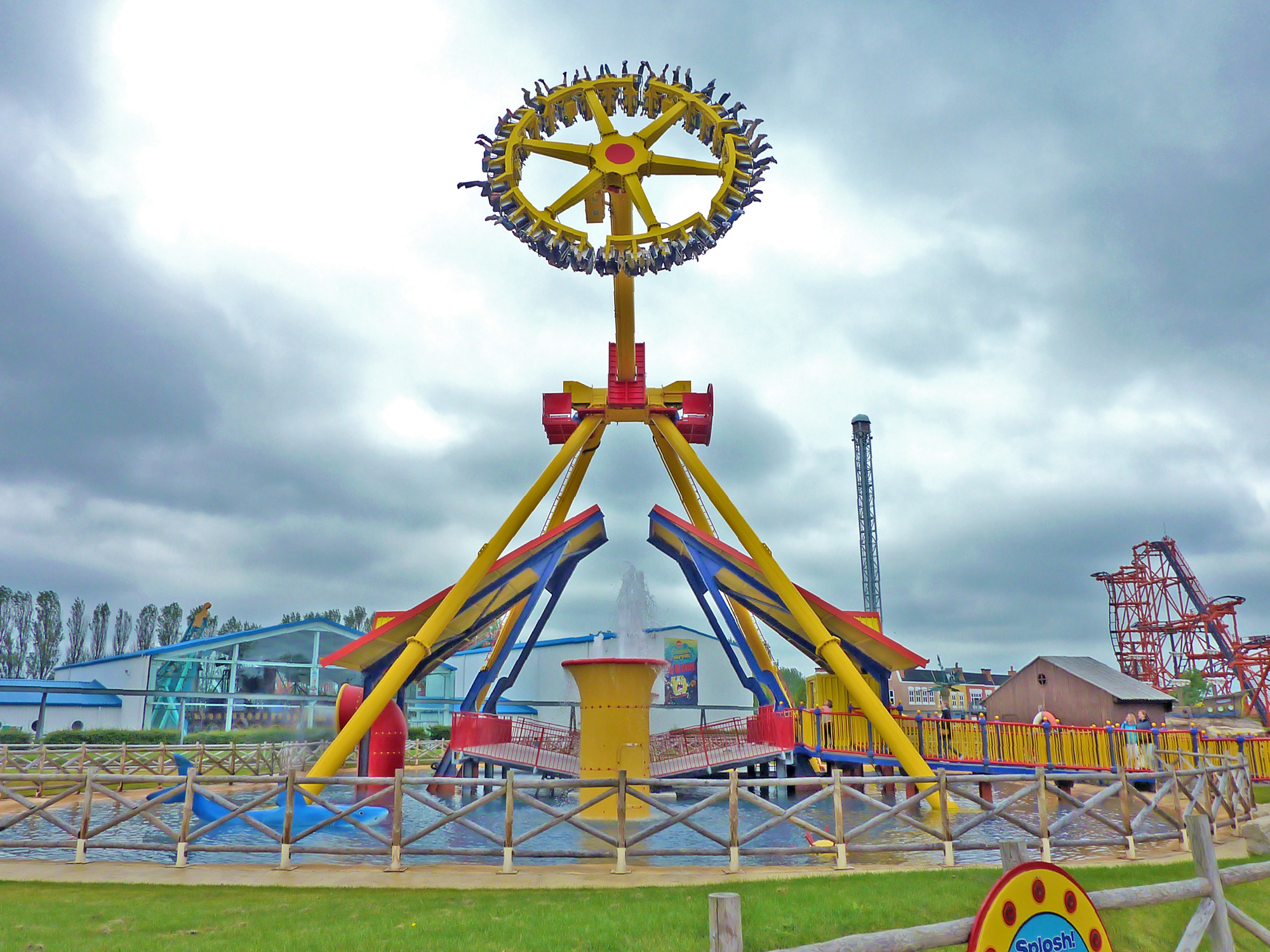

explorer-giant-top-swing-fabbri-1

A classical Pendulum Ride

The ride is made up by a pyramidal structure, whose corners are the 4 inclined columns that support the ride. The central column, also called vertical arm, supports the rotary centre at its lower end. The rotary centre comprises 6 radial arms that at their outer ends hold 6 gondolas with 5 seats each.

The passenger’s unit revolves around the axis of the arm at a max speed of 13rpm; the arm oscillates around the horizontal axis of the hub with a 110° angle to the right and to the left with respect to the rest position. Two versions available: Giant and Midi.

Main movements:

  • Rotation of the passenger unit
  • Swinging of the arm making a 110-degree angle

EXPLORER park model

  • DIMENSIONS

    FOOTPRINT: 18.40 meters / 60’4” x 15.4 meters / 50’6”. HEIGHT: 13.2 meters / 43’4”. Sizes can be modified upon request.

  • CAPACITY

    CARS: 6. SEATS: 30. ESTIMATED HOURLY CAPACITY: 600 pph. MINIMUM RIDER HEIGHT: 130 cms. SUGGESTED RIDE CYCLE: 120 + 60 seconds.

  • POWER REQUIREMENTS

    CITY LINE CONNECTION: 230 kw approx.

  • TRANSPORT AND ASSEMBLY

    TRANSPORT: 2 x 40’ O.T. + 1 x 40’ flat rack. WEIGHT: 45 tons. RIDE ASSEMBLY TIME: 10 days.

  • AVAILABILITY

    Park model

MIDI EXPLORER, indoor and outdoor

  • DIMENSIONS

    FOOTPRINT: 12.85 meters / 42’2” x 10 meters / 32’10”. HEIGHT (static): 10.9 meters / 35’9”. HEIGHT (dynamic): 16.5 meters / 54’2”. Sizes can be modified upon request.

  • CAPACITY

    SEATS: 16. ESTIMATED HOURLY CAPACITY: 320 pph. MINIMUM RIDER HEIGHT: 130 cms. SUGGESTED RIDE CYCLE: 120 + 60 seconds.

  • POWER REQUIREMENTS

    CITY LINE CONNECTION: 120 kw approx.

  • TRANSPORT AND ASSEMBLY

    TRANSPORT: 3 x 40’ O.T. WEIGHT: 23 tons. RIDE ASSEMBLY TIME: 12-15 days.

  • AVAILABILITY

    Park model
