Aladdin's Ride

Our Flying Carpet ride for funfairs and parks

M HIGH
0
ACCELERATION
0 G
RIDERS
0
's-ride-carpet-fabbri

A classic ride with great popular appeal

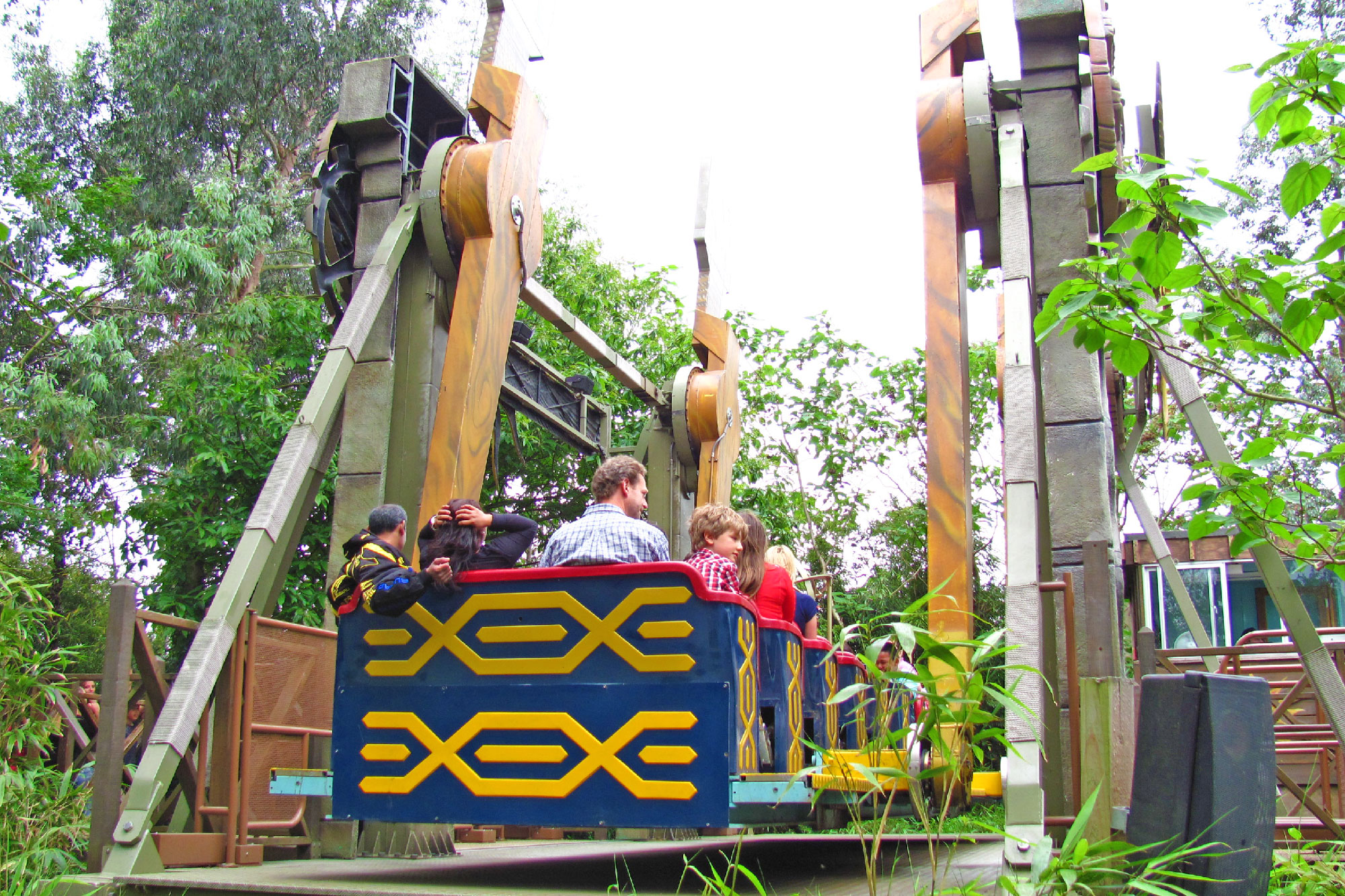

Aladdin’s Ride is a traditional ride with a good capacity. It consists of 4 columns fixed to a concrete floor and two pairs of rotating arms that are connected to the columns by means of bearings. The arms hold up a 40-seater unit (the so-called “flying carpet”) where riders sit facing sideways, so that when the carpet spins 360° on its vertical axis (forwards or backwards), they always maintain a position that is parallel to the ground. The drop phase of each rotation simulates a short free-fall with a nice G-force.

The ride features all the necessary safety controls and the lap bar restraints are electronically controlled. Different lighting packages are available, from white LEDs to multi-color LEDs.

The midi version

can accommodate up to 20 adults or children, requires no foundations and thanks to its compact size and lightweight loads on the ground, it is highly appropriate for shopping malls and indoor amusement parks too. This exhilarating 360-degree full rotation family thrill ride is available with different theme settings to fit any location, also including the traditional flying carpet.

's-ride-flying-carpet-fabbri-2
's-ride-flying-carpet-fabbri-1

PARK MODEL

  • DIMENSIONS

    FOOTPRINT: 18 meters / 59’1” x 14.6 meters / 47’11”. FOOTPRINT (dynamic): 19 m / 62’4” x 9.9 m / 32’6’’. HEIGHT: 8.6 meters / 28’3”. HEIGHT (dynamic): 11 meters / 36’1”. Sizes can be modified upon request.

  • CAPACITY

    CARS: 1 vehicle, 10 rows. SEATS: 40. ESTIMATED HOURLY CAPACITY: 800/960 pph. MINIMUM RIDER HEIGHT: 130 cms. SUGGESTED RIDE CYCLE: 90 + 60 seconds.

  • POWER REQUIREMENTS

    CITY LINE CONNECTION: 90 kw approx.

  • TRANSPORT AND ASSEMBLY

    TRANSPORT: 3 x 40’ O.T. containers. WEIGHT: 36 tons. RIDE ASSEMBLY TIME: 7 days.

  • AVAILABILITY

    Park or Travelling model
