CORSAIR

FAMILY RIDES

A classic swinging ride and a huge success worldwide

M HIGH

km/h

UP TO

riders

Family swinging ride

Corsair was the first swinging ride sold in the market and became successful thanks to the classic “pirate” theming. Dozens of units have been sold worldwide making it one of the most popular rides in the world.

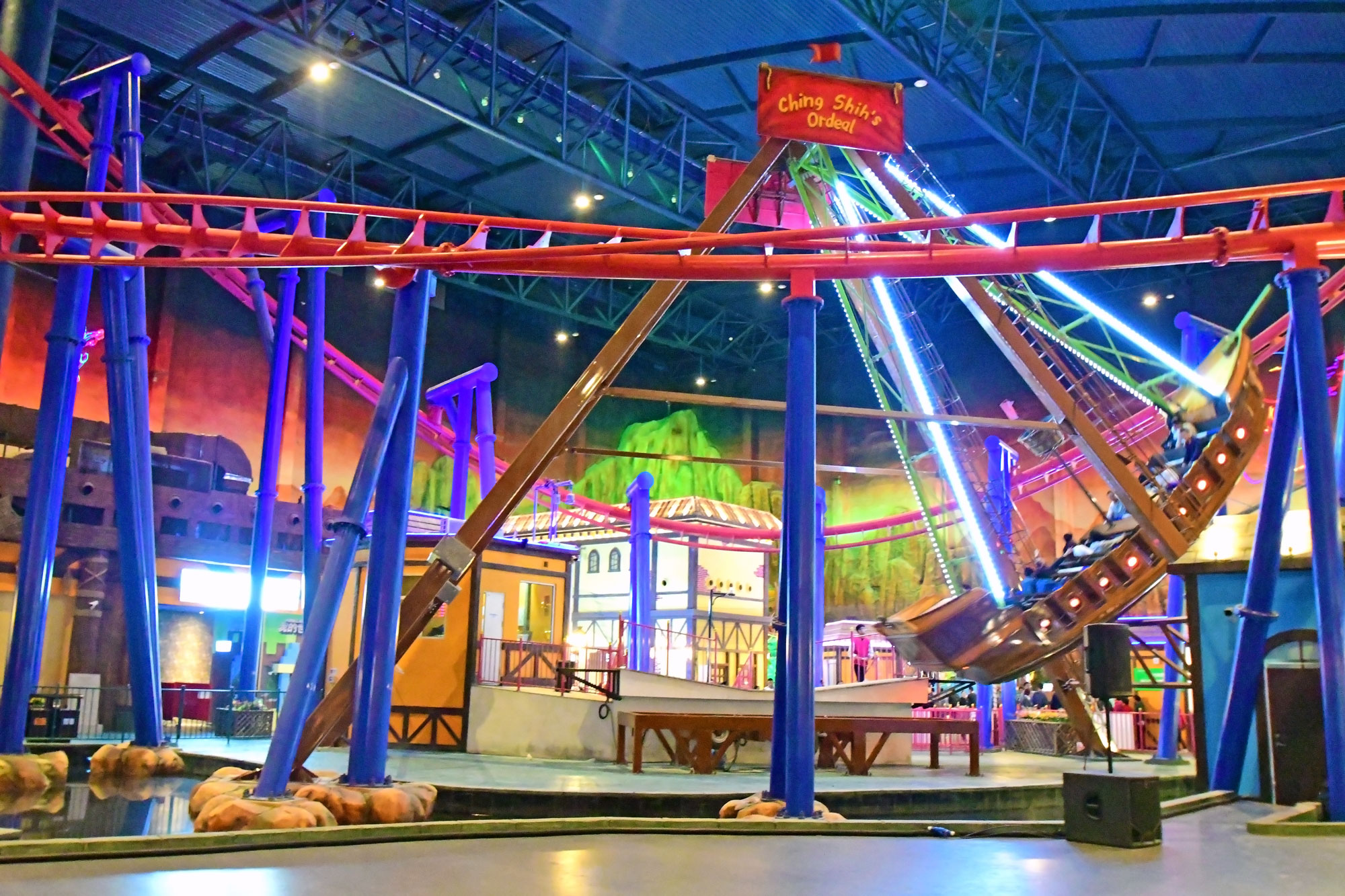

The ride consists of 4 columns converging at the top where 2 swinging arms are connected by means of swinging bearings. To the other end of the arm a ship-shaped vehicle with 8 rows of 5 seats is fixed. Passengers’ safety is guaranteed by individual lap bars.

The thrills of this ride are generated by the gravity acceleration: the very simple pendulum effect happens even without a counterweight and swings the ship from left to right making a max. angle of 70°. The passengers are seated in such a way that they swing forward and backward. Corsair is a typical family ride and ride cycles can have different lengths.

40-SEATER MODEL

DIMENSIONS

FOOTPRINT: 24.5 meters / 80’5” x 11 meters / 36’1’’. HEIGHT (static): 13.5 meters / 44’3”. HEIGHT (dynamic): 2.75 meters / 9’. Sizes can be modified upon request.
CAPACITY

SEATS: 40 (8 rows of 5 passengers). ESTIMATED HOURLY CAPACITY: 800 pph. MINIMUM RIDER HEIGHT: kids under 130 cms must be accompanied by an adult. SUGGESTED RIDE CYCLE: 120 + 60 seconds.
POWER REQUIREMENTS

CITY LINE CONNECTION: 75 kw approx.
TRANSPORT AND ASSEMBLY

TRANSPORT: 1 x 40’ O.T. + 2 x 40’ box. WEIGHT: 18.5 tons. RIDE ASSEMBLY TIME: 8-10 days.
AVAILABILITY

Park or Travelling model

72-SEATER MODEL

DIMENSIONS

FOOTPRINT: 29.5 m / 96’9” x 12 m / 39’4’’. HEIGHT (static): 13.5 meters / 44’3”. HEIGHT (dynamic): 2.75 meters / 9’. Sizes can be modified upon request.
CAPACITY

SEATS: 72 (12 rows of 6 passengers). ESTIMATED HOURLY CAPACITY: 1500 pph. MINIMUM RIDER HEIGHT: kids under 130 cms must be accompanied by an adult. SUGGESTED RIDE CYCLE: 120 + 60 seconds.
POWER REQUIREMENTS

CITY LINE CONNECTION: 75 kw approx.
TRANSPORT AND ASSEMBLY

TRANSPORT: 4 x 40’ O.T. WEIGHT: 35 tons. RIDE ASSEMBLY TIME: 8-10 days.
AVAILABILITY

Park or Travelling model
